Upgrade your gaming PC with the GIGABYTE GeForce RTX 5060 Ti EAGLE OC ICE 8GB, built for smooth 1080p/1440p performance and next-gen RTX features. It packs 4,608 CUDA cores with clocks up to 2617 MHz boost, plus ultra-fast 8GB GDDR7 memory at 28 Gbit/s on a 128-bit bus for responsive gameplay and quick texture streaming. Enjoy modern technologies like DLSS 4, Reflex 2, Gen 4 ray tracing, Gen 5 Tensor cores, and AV1 encode/decode for crisp streaming and recording. The compact dual-slot, fan-cooled design fits smaller builds, while outputs include 1x HDMI 2.1b and 3x DisplayPort 2.1b for up to 4K 480Hz or 8K 120Hz (DSC). Uses PCIe 5.0 x8, draws 180W, and needs a 650W PSU with a single 8-pin connector. Compatible with Windows 10/11.

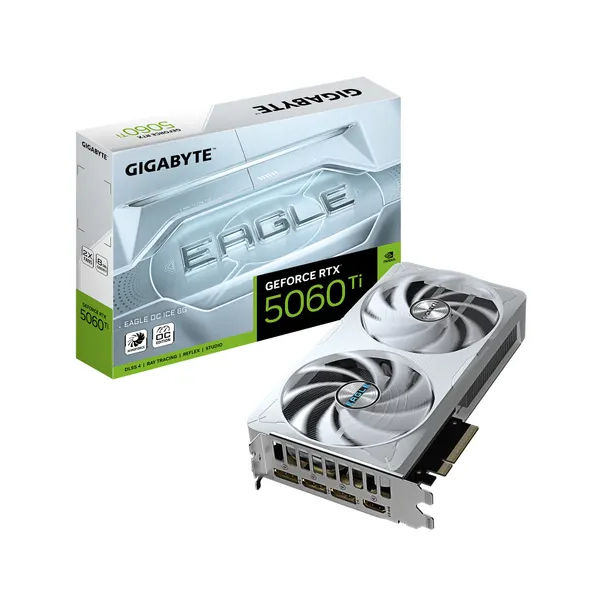

Gigabyte RTX5060 TI EAGLE OC ICE 8GB GDDR7 HDMI 3xDP
| type | graphics card |
| EAN | 4719331356095 |
| Manufacturer's No. |
GV-N506TEAGLEOC ICE-8GD |
| slot |
PCIe x8 Version 5.0 |
| occupied slots | 2 |
| GPU | |
| Designation |
NVIDIA GeForce RTX 5060 Ti |
| GPU class |
NVIDIA GeForce RTX Gaming |
| Clock frequency | 2407 MHz |
| GPU Boost Clock | 2617 MHz |
| Stream processors | 4608 |
| Support |
DirectX 12 Ultimate, OpenGL 4.6 |
| memory | |
| capacity | 8 GB (GDDR7) |
| Connection | 128-bit |
| Data transfer rate | 28 Gbit/s |
| Connections |
1x HDMI version 2.1b, 3x Displayport version 2.1b |
| power supply | |
| Average consumption | 180 W |
| Connections |
1x 8-pin (6+2) power connector |
| required power supply | min. 650 W |
| cooling | Cooling with fan |
|
Operating systems |
|
| Supports |
Windows 11, Windows 10 |
| feature |
NVIDIA DLSS 4, Reflex 2, RTX Video, RTX Remix, NVIDIA Broadcast, NVIDIA ShadowPlay, NVIDIA Highlights, NVIDIA G-SYNC, NVIDIA App, Game Ready Driver, NVIDIA Studio Driver, NVIDIA GPU Boost, NVENC Encoder: Gen 9, NVENC Decoder: Gen 6, AV1 Encoder and Decoder, Raytracing Cores: Gen 4, TensorCores (AI): Gen 5 |
| Further information |
Maximum resolution: 4K at 480Hz or 8K at 120Hz with DSC |
| Dimensions |
Width: 122 mm x Height: 40 mm x Depth/Length: 215 mm |
| Weight | 600 grams |
