The ASUS X870E ATX motherboard is designed for high-performance gaming PCs, supporting AMD Ryzen 7000–9000 series processors on the AM5 socket. With four DDR5 DIMM slots, it handles up to 256 GB RAM at speeds up to 8000 MHz, perfect for extreme multitasking and gaming. It features PCIe 5.0 x16 and PCIe 4.0 x16 slots, five M.2 slots with passive cooling, and SATA 6 Gb/s support. Advanced connectivity includes Wi-Fi 7, Bluetooth 5.4, 5 GBase-T LAN, USB 4.0, USB 3.2/3.1 Type-C, HDMI, and 7.1-channel audio. RGB headers compatible with Aura Sync enhance visual customization.

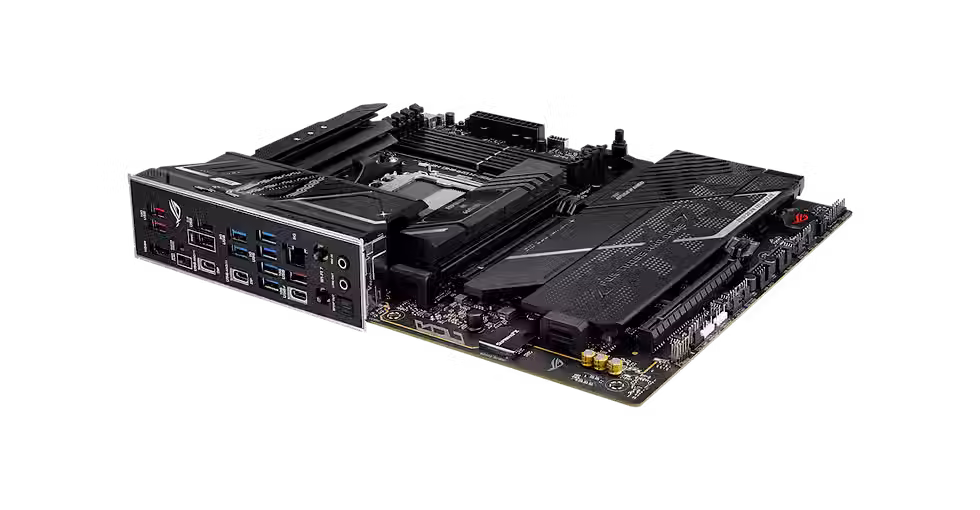

ASUS ROG STRIX X870E-H GAMING WIFI motherboard socket AM5
| Item number | A1095613 |
| EAN | 4711636167208 |
| Manufacturer number |
90MB1M90-M0EAY0 |
|
Mainboard basic features |
|
| Chipset manufacturer | AMD |
| Manufacturer | ASUS |
| Chipset | AMD X870E |
| Form factor | ATX |
|
Motherboard processor |
|
| Processor family | AMD |
| Processor socket | Socket AM5 |
| Supported processors |
Ryzen 9000, Ryzen 8000/8000G, Ryzen 7000 |
|
Motherboard memory |
|
| Number of DIMM slots | 4x |
| Maximum main memory | 256 GB |
| Memory type | DDR5 |
| Non-ECC, Un-buffered | Yes |
| supported memory clock | up to 8000 MHz |
|
Motherboard expansion slots |
|
| PCI Express x16 (total) | 2x |
| PCI Express 5.0 x16 | 1x |
| PCI Express 4.0 x16 | 1x |
| M.2 | 5x |
|
Mainboard external connections |
|
| HDMI | 1x |
| USB 4.0 |
2x (with DisplayPort 1.4a) |
| USB 3.2 Type-C | 1x |
| USB 3.1 Type-C | 1x |
| USB 3.0 | 6x |
| USB 2.0 | 2x |
| Ethernet (LAN) | 1 x |
| 3.5mm jack | 2x |
| Toslink/S/PDIF (optical) | Yes |
|
Motherboard internal connections |
|
| SATA 6 GB/s | 4x |
| USB 3.2 header | 1x |
| USB 3.0 header | 2 x |
| USB 2.0 header | 2 x |
| RAID | 36535 |
| Power connections |
1x 24-pin ATX, 2x 8-pin EPS12V |
| Audio channels | 7.1 |
|
Motherboard cooling |
|
| CPU fan 4-pin | 2x |
| 4-pin case fan | 5x |
| Pump 4-pin | 1x |
| Thermal sensor | 1x |
|
Motherboard lighting |
|
| ARGB header 3-pin | 3x |
| Lighting color | RGB |
| LED compatibility |
ASUS Aura Sync |
|
Mainboard network |
|
| LAN controller |
5GBase-T (Realtek) |
| Transfer rate |
10/100/1000/2500/5000 Mbps |
| Wi-Fi |
Wi-Fi 7 (WLAN 802.11a/b/g/n/ac/ax/be, 2x2) |
| Bluetooth | 5.4 |
|
Mainboard features |
|
| USB BIOS Flashback | Yes |
| M.2 passive cooler | 4x |
| Diagnostic LED | Yes |
| Integrated I/O panel | Yes |
| Audio+solid capacitors | Yes |
