Elevate your gaming rig with the ATXi motherboard, compatible with Socket S1 processors and designed to support Windows 10. This motherboard is optimized for speed with support for up to 256 GB of DDR5 RAM across 4 DIMM slots and includes cutting-edge Wi-Fi 6 connectivity. It features extensive expansion capabilities with five PCI Express x16 slots (Gen 5), dual M.2 slots for SSDs, and a plethora of USB ports including USB-A 2.0 and 3.2 Gen 1 and 2. Enhance your audio experience with 7.1 channel support and customize your setup with RGB and Thunderbolt headers. Ideal for advanced RAID configurations, it ensures reliable, high-speed network performance with a 2.5 Gb/s RJ45 Ethernet port. Dimensions are 244 mm by 305 mm, weighing 1565 g, delivering a robust foundation for high-performance gaming and productivity.

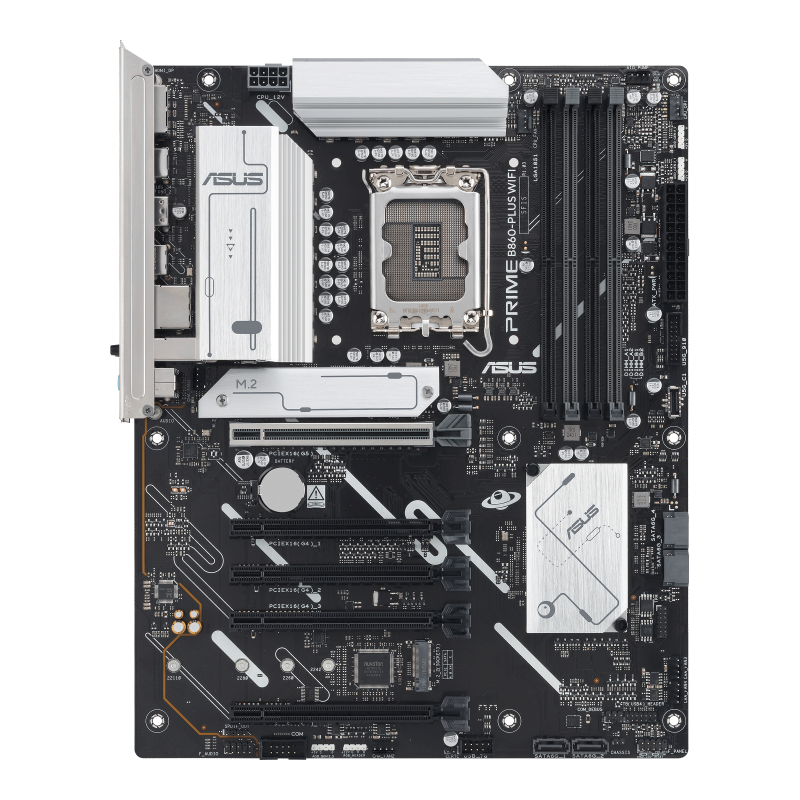

ASUS PRIME B860-PLUS WIFI, motherboard
Specification
| Form factor | ATXi |
| Processor socketi | Socket S1 |
| Mainboard features |
Front panel audio connector, |
| Operating system compatibility | Windows 10 |
| BIOS type | UEFI AMI |
| Wireless transmission | Bluetoothi, Wi-Fi |
| Wi-Fi standard |
Wi-Fi 6 / 802.11ax |
| Memory form factor | DIMM |
| Number of memory modules (RAM) | 4 x |
| Max. memory (RAM) | 256 GB |
| Memory type | DDR5 RAM |
| RAM bufferi | Unbufferedi |
| Video connections | DisplayPort (1x) |
| Network connections |
RJ45 2.5 Gigabit Ethernet (1x) |
| Max. port speedi | 2.50 Gbit/s |
| Audio channeli | 7.1 Channeli |
| RAID configuration | 0, 1, 10, 5 |
| Internal connection options | M.2 (2x), S-ATA III (4x) |
| Expansion slot |
PCI Express x16 (5x) |
| PCI express version (max.) | 5 |
| Number of fan connector | 4 |
| Exact USB ports |
USB-A 2.0 (4x), |
| Peripheral connections |
USB 2.0 Type-A (4x), |
| Power connectors | 24-pin ATXi, 8-pin ATX 12Vi |
| Scope of delivery |
Cables supplied: SATA, |
| Length | 244 mm |
| Width | 305 mm |
| Weight | 1565 g |
