This 1200W fully modular ATX 3.1 gaming power supply delivers reliable and efficient energy with 80 PLUS Gold certification. It features advanced protection circuits including OCP, OVP, UVP, SCP, OTP, and OPP for ultimate hardware safety. Designed with a quiet 120mm semi-passive fan, 2x 12V-2x6 connectors, and 12x SATA connectors, it's ideal for high-performance gaming PCs requiring clean cable management and powerful GPU support without RGB distractions.

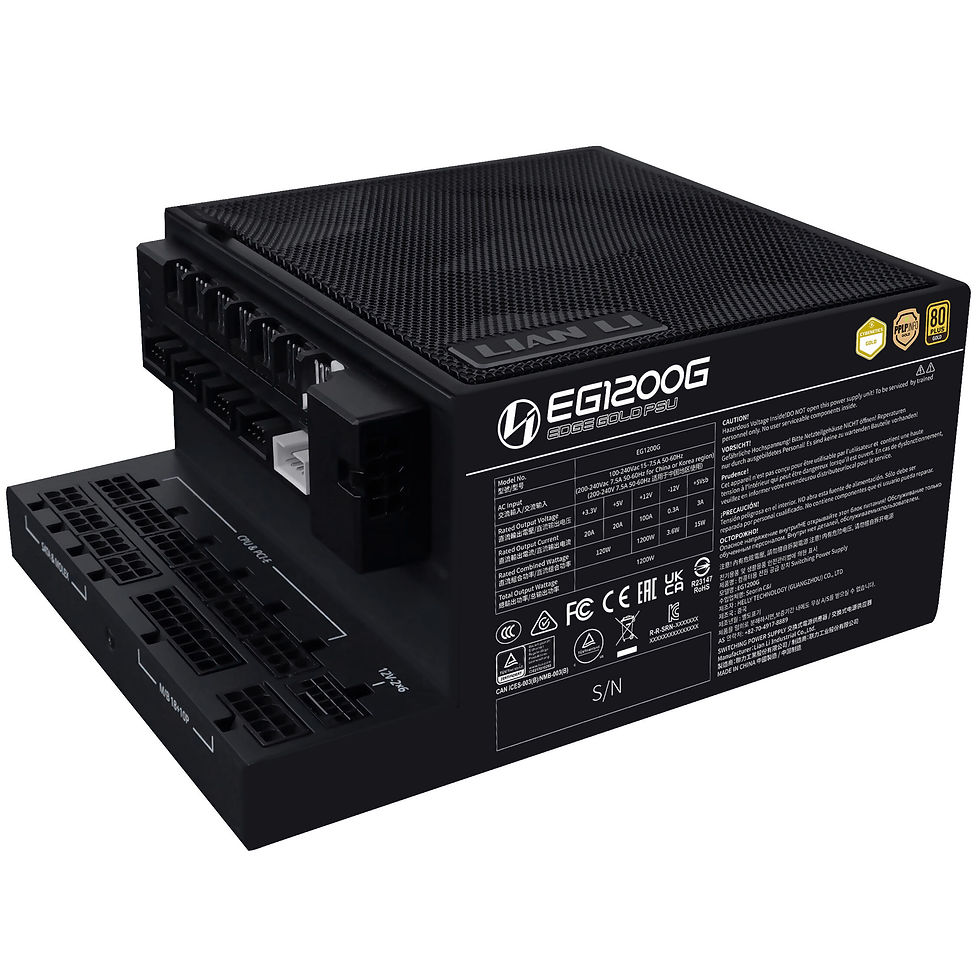

Lian Li EDGE GOLD 1200 80 PLUS Gold power supply, PCIe 5.1, ATX 3.1 - 1,200 watt
Specification
Colour | |
Primary Colour | Black |
Dimensions | |
Length / Depth | 182 mm |
Width | 86 mm |
Height | 150 mm |
Weight | 3640 g |
Fan Specifications |
|
Fan Size | 120 mm |
Power Supply | |
PSU Format | ATX |
ATX Standard | ATX 3.1 |
12V Distribution | single rail |
Modular Power Supply | Yes |
Modular Type | fully modular |
Protection Circuits |
OCP (Overcurrent Protection), OPP (Overload Protection), OTP (Overtemperature Protection), OVP (Overvoltage and Undervoltage Protection), SCP (Short-Circuit Protection), UVP (Undervoltage Protection) |
Power Specifications |
|
Total Power Output | 1200 W |
Power Output +3.3V | 66 W |
Power Output +5V | 100 W |
Power Output +3.3V & +5V (combined) | 120 W |
Power Output +12V rails | 1200 W |
Power Output -12V | 3.6 W |
Power Output +5Vsb | 15 W |
Cable Specifications |
|
Max. CPU Power Cable Length | 750 mm |
Max. 24-Pin Motherboard Power Cable Length | 620 mm |
Max. 12V-2x6 Cable Length | 650 mm |
Max. PCIe Power Cable Length | 650 mm |
Max. SATA Power Cable Length | 400 mm |
Max. Molex Cable Length | 500 mm |
Cooling | |
Semi Passive Power Supply | Yes |
Switchable Semi Passive Mode | No |
Semi Passive Type | passive |
Internal Ports | |
CPU Power Connectors 12V ATX/EPS | 2 |
CPU Power Supply |
1x 4+4-Pin + 1x 8-Pin |
12V-2x6 Power Connectors | 2 |
8 Pin PCIe Power Connectors | 3 |
6+2 Pin PCIe Power Connectors | 1 |
SATA Power Connectors | 12 |
4 Pin Molex Power Connectors | 4 |
External Ports | |
USB hub | Yes |
Efficiency Class | |
80PLUS Efficiency | 80 PLUS Gold |
Lighting | |
Lighting / RGB | No |
