Power smooth 1080p and high-refresh gaming with the GeForce RTX 5060 Ti 8GB, built on the RTX 50 series platform. Equipped with 4,608 shader units, 144 Tensor cores for AI acceleration, and 36 ray tracing cores, it delivers fast frame rates with realistic lighting and VR-ready performance. Boost clocks up to 2617 MHz keep gameplay responsive, while ultra-fast 8GB GDDR7 memory runs at 28 Gbps on a 128-bit bus, providing 448 GB/s bandwidth for quick texture streaming. A triple-fan air cooler maintains stable temperatures in long sessions, and the compact 281mm dual-slot design fits many cases. Connect up to modern displays via 3x DisplayPort 2.1 and 1x HDMI 2.1. Supports Adaptive-Sync, NVIDIA G-SYNC, and AMD FreeSync to reduce tearing. Uses PCIe 5.0 and requires a single 8-pin power connector.

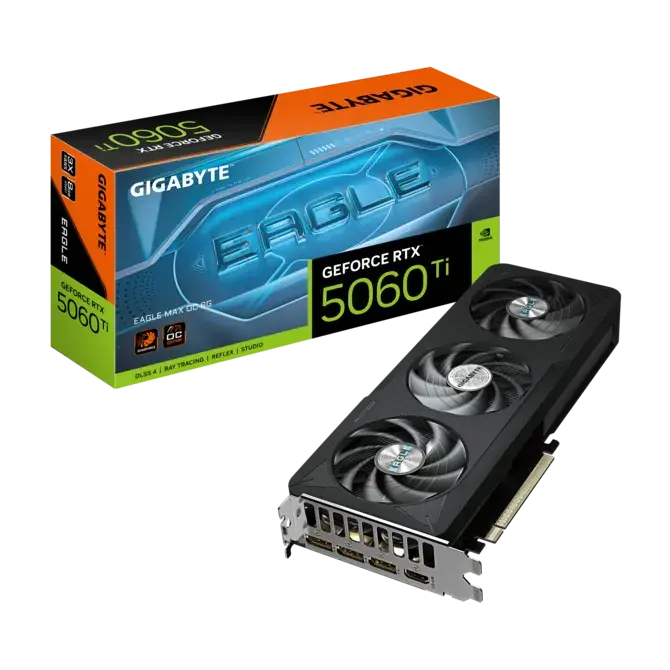

Gigabyte GeForce® RTX 5060 TI 8GB EAGLE MAX OC
| Color | |
| Main color | Black |
|
Dimensions / Measurements |
|
| Length / Depth | 281 mm |
| Width | 115 mm |
| Height | 40 mm |
| graphics card | |
| GPU series | RTX 50 series |
| graphics card |
NVIDIA GeForce RTX 5060 Ti 8GB |
| GPU series name |
NVIDIA GeForce RTX 5060 Ti 8GB |
| graphics chip | GB206-300 |
| Manufacturing process | 5 nm |
| Shader units | 4608 |
| Tensor cores | 144 |
| Ray tracing cores / Ray accelerators | 36 |
| GPU memory type | GDDR7 |
| Connector/Slot Standard | PCIe 5.0 |
| GPU memory size (GB) | 8 |
| GPU memory interface (bits) | 128 |
| GPU memory bandwidth (GB/s) | 448 |
| GPU memory clock (MHz) | 1750 |
| Effective GPU memory clock speed (Gbps) | 28 |
| Clock speeds | |
| Max. GPU clock speed (base) | 2407 MHz |
| Max. GPU clock speed (Boost) | 2617 MHz |
| max. memory clock | 28000 MHz |
| cooling | |
| Number of graphics card fans | 3 |
| Water cooling | |
| Water cooling | No |
|
Internal connections |
|
| required power connections | 8-Pin PCIe (1x) |
| External ports | |
| Display connections |
DisplayPort (3x), HDMI (1x) |
| Display connector standards |
DisplayPort 2.1, HDMI 2.1 |
| Expansion slots | |
| required expansion slots | 2 Slots |
|
Standard / Specification |
|
| Adaptive sync technology (G-SYNC / FreeSync) |
adaptiveSync, AMD Freesync, NVIDIA G-SYNC |
| Features | |
| Virtual Reality Ready | Yes |
| AI | |
| AI acceleration | Yes |
| AI Accelerator | Tensor Cores |
| lighting | |
| Lighting / RGB | No |
