The B650M D3HP MicroATX motherboard supports AMD AM5 socket with the B650 chipset. It handles up to 192GB DDR5 RAM (up to 7600MHz OC) and features PCIe 4.0 for GPUs. With dual M.2 slots, 7.1 HD audio, 2.5Gb LAN, and USB 3.2 Gen1 Type-C, it's ideal for high-performance gaming.

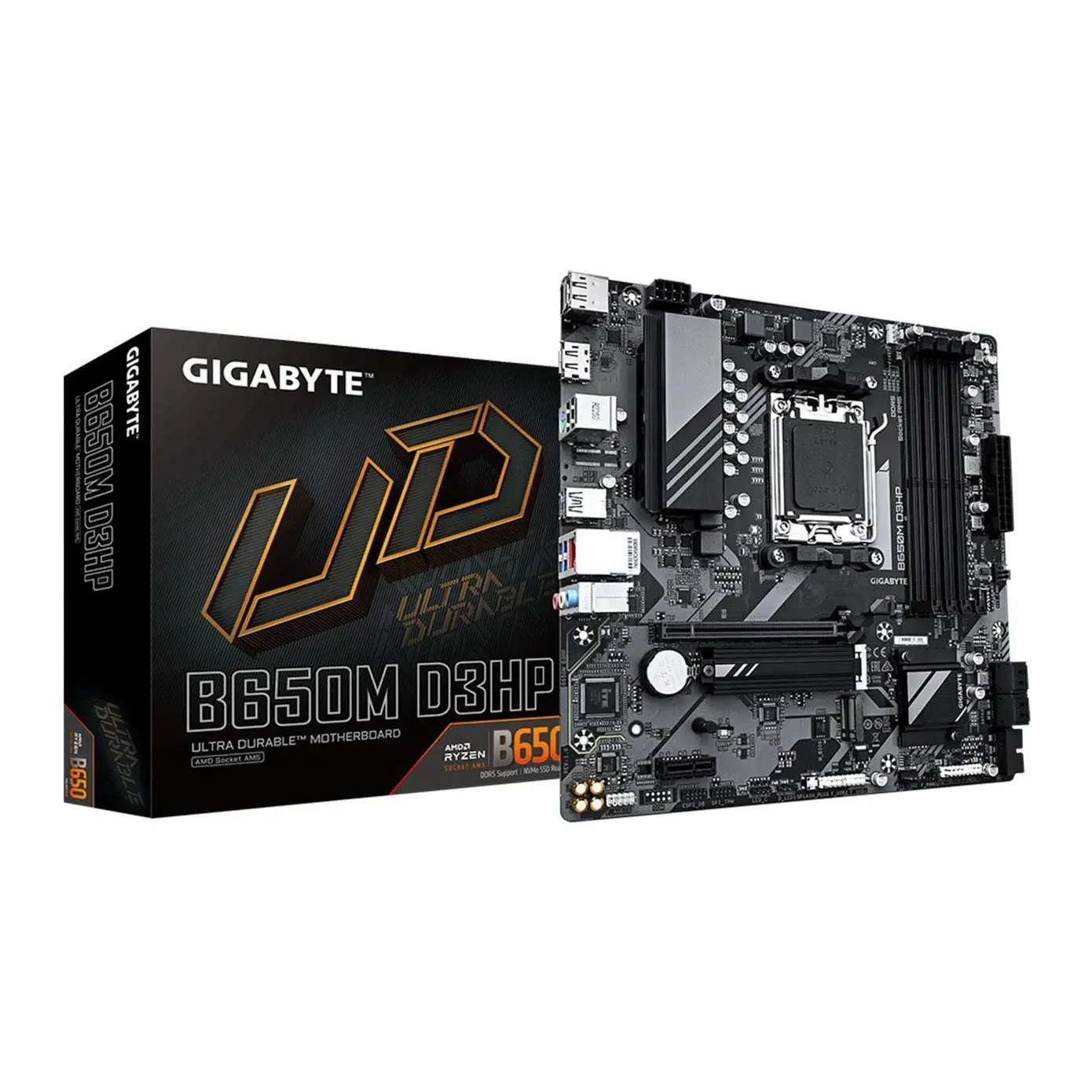

Gigabyte B650M D3HP AX (B650,AM5,mATX,DDR5)

Name: Gigabyte B650M D3HP AX (B650,AM5,mATX,DDR5)
SKU: 456093

SKU: 456093

€185.00

Sales Tax Included

Quantity

Only 2 left in stock

Specifications

Core Specifications
Edition	B650M D3HP
Form Factor	MicroATX
CPU Socket	AM5
Chipset	AMD B650

RAM Memory Support
Memory Type	DDR5
Memory Channel	Dual (2)
Memory Type (ECC)	Non-ECC
Memory Type (R/U)	UDIMM (Unbuffered)
Memory Speed (Mhz)	DDR5 - 4400(OC) DDR5 - 4800 DDR5 - 5200 DDR5 - 5600(OC) DDR5 - 6000(OC) DDR5 - 6200(OC) DDR5 - 6400(OC) DDR5 - 6600(OC) DDR5 - 6800(OC) DDR5 - 7000(OC) DDR5 - 7200(OC) DDR5 - 7600(OC)
Max. Memory Capacity	192GB

Audio
Audio	7.1 Channel HD Audio

Graphics Support
Primary GPU Interface	PCIe 4.0 (x16)
NVIDIA SLI Support	N/A
AMD CrossFire Support	N/A
Integrated Graphics	Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors	DisplayPort 1.4 HDMI 2.1

Internal Connectivity
Expansion Slots	1 x M.2, 22-80, PCIe Gen4x4 1 x M.2, 22-80/110, PCIe Gen4x4 1 x PCIe 3.0 x1 1 x PCIe 4.0 x16 4 x SATA 6GB/s
SATA Support	SATA3
RAID Support via
Storage Mode Support	RAID 0 RAID 1 RAID 10
Internal I/O	1 x 24-pin (Power) 1 x 4-pin CPU Fan Connector 1 x 8-pin (Power) 2 x Addressable Digital RGB Header 1 x Clear CMOS jumper 1 x Front Panel Audio Header 1 x Front Panel Connector 2 x M.2 1 x Q-Flash Plus Button 1 x Reset Button 1 x RGB (RGBW) LED Strip Header 4 x SATA III - 6Gb/s 2 x System Fan header 1 x TPM Header 2 x USB 2.0 Header 1 x USB 3.2 Gen1 Header 1 x USB Type-C

External Connectivity
Network Interface Type	Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules	1 x 2.5 Gigabit LAN
Rear I/O Connectors	1 x 10/100/1000/2500 (LAN) 2 x DisplayPort 1.4 1 x HDMI 2.1 1 x Line In 1 x Line Out 1 x Mic-In 1 x PS/2 Keyboard/Mouse Combo 1 x Q-Flash Plus Button 1 x S/PDIF-Out (Optical) 2 x SMA antenna connectors (2T2R) 2 x USB 2.0 3 x USB 3.2 Gen1 Type-A 1 x USB 3.2 Gen1 Type-C
