Maximize your gaming and computing potential with this feature-rich Micro ATX motherboard powered by AMD's B550 chipset and AM4 socket, supporting Ryzen 3rd to 5th Gen processors. It supports up to 128GB DDR4 RAM, overclockable up to 4733 MHz. Integrated Wi-Fi 6E ensures high-speed wireless connectivity, while Bluetooth enhances versatility. With dual video outputs including HDMI 2.1, Realtek Gigabit Ethernet, and expansive USB options, this board is ideal for building a powerful, efficient PC setup.

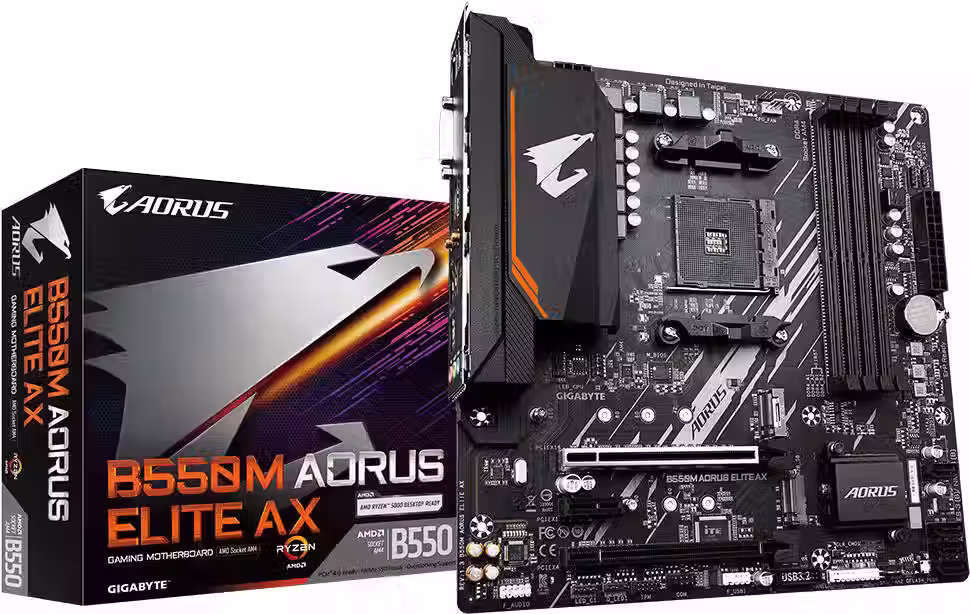

Gigabyte B550M AORUS ELITE AX
Specification
Form factor |
Micro ATX (mATX)i |
Processor socketi | AM4 |
Chipset | AMD B550 |
Mainboard features |
Front panel audio connector, |
Operating system compatibility | Windowsi |
BIOS type | UEFI AMI |
Wireless transmission | Bluetoothi, Wi-Fi |
Wi-Fi standard |
Wi-Fi 1 / 802.11bi, |
Processor family |
Ryzen 3rd generation, |
Memory form factor | U-DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4-3200 |
Max. RAM OC | 4733 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2933 MHz, 3200 MHz, 4000 MHz, 4400 MHz |
Memory type | DDR4-RAM |
RAM bufferi | Unbuffered |
Video connections | DVI-D (1x), HDMI (1x) |
Video connection version | HDMI 2.1i |
Network connections |
RJ45 Gigabit Ethernet (1x) |
Ethernet controller brand | Realtek |
Ethernet controller |
Realtek RTL8118AS |
Max. port speedi | 1 Gbit/s |
Chip | Realtek ALC887 |
Audio channeli | 7.1 Channeli |
RAID configuration | 0, 1, 10 |
Internal connection options |
M.2 PCI/SATA Combo (2x), |
Expansion slot |
PCI Express x1 (1x), |
PCI express version (max.) | 4 |
Number of fan connector | 2 |
USB ports | USB-A |
Exact USB ports |
USB-C 3.2 Gen 1 (1x) |
Peripheral connections |
USB 2.0 Type-A (4x), |
Power connectors | 24-pin ATXi, 8-pin ATX 12Vi |
Scope of delivery |
Norton Internet Security (OEM), |
Length | 244 mm |
Width | 244 mm |
Height | 35 mm |
Weight | 1270 g |
