The GeForce RTX™ 5080 WINDFORCE OC SFF 16G is a powerhouse graphics card that combines NVIDIA's cutting-edge Blackwell architecture with Gigabyte's innovative WINDFORCE cooling system in a compact form factor. Featuring 10,752 CUDA cores, 16GB of high-speed GDDR7 memory, and a factory-overclocked boost clock of 2.62 GHz, this card delivers exceptional performance for 4K gaming and content creation. With support for DLSS 4, advanced ray tracing, and AI capabilities through 5th generation Tensor Cores, the RTX 5080 WINDFORCE OC SFF 16G offers twice the speed of its predecessor in demanding scenarios. Its small form factor design, coupled with the efficient WINDFORCE cooling solution, makes it an ideal choice for high-performance builds in compact cases, without compromising on power or features.

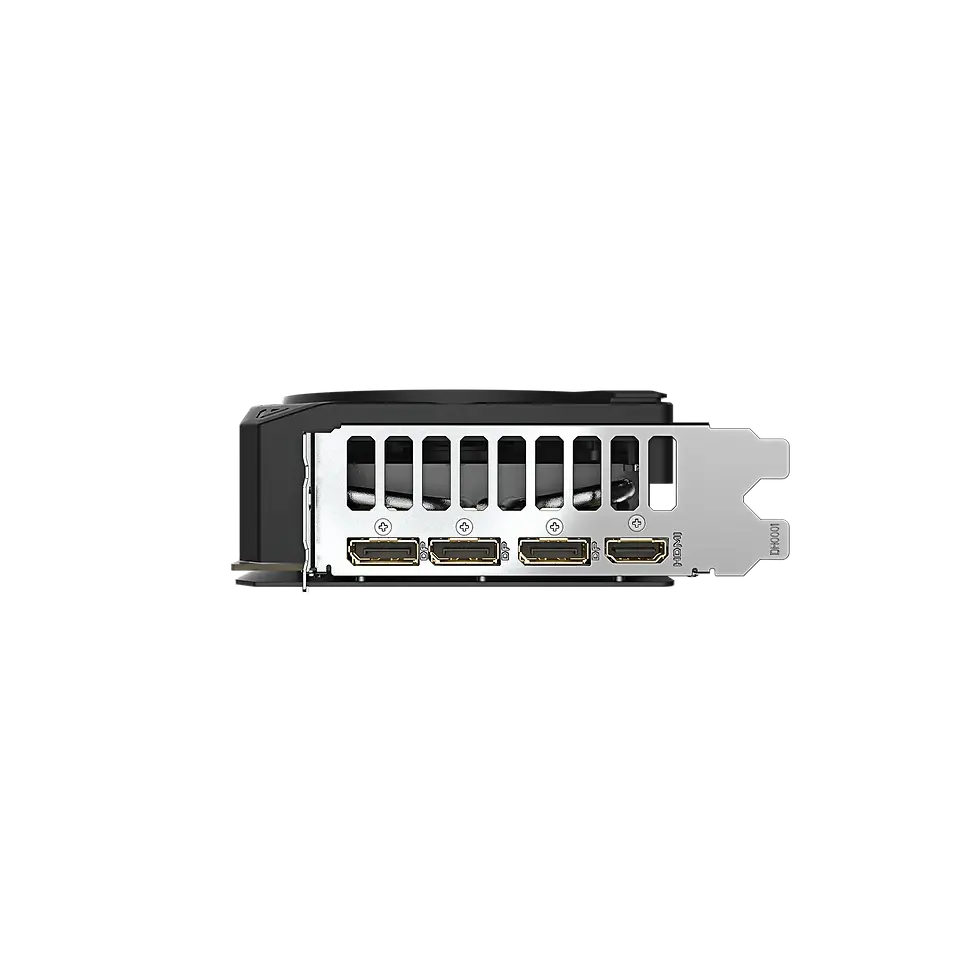

GIGABYTE GeForce RTX™ 5080 WINDFORCE OC SFF 16G
| VGA - Details | |
| Chipset manufacturer |
NVIDIA GeForce RTX 5080 |
| graphics chip | GB203-400-A1 |
| version | OC Edition |
| Graphics memory | 16 GB GDDR7 |
| Storage connection | 256 bit |
| Memory clock | 1875 MHz |
| bandwidth | 960 GB/s |
| Construction (slots) | Triple slot |
| Manufacturing process | TSMC 4N |
| power connection |
1x 12V-2x6 (via adapter: 3x 8-pin PCIe) PCIe 5.0 |
| Power consumption | 360 watts (TDP) |
| Special features |
AI acceleration, backplate, NVIDIA GeForce SFF-ready, dual BIOS switch, graphics card bracket |
| VGA ports | |
| HDMI | 1x |
| DisplayPort | 3x |
|
VGA - Special Features |
|
| Real-time ray tracing (DXR) | Yes |
| AI Acceleration (DLSS) | Yes |
| NVIDIA Ansel | Yes |
| NVIDIA G-SYNC™ HDR | Yes |
| DirectX Version | 12.2 |
| OpenGL | 4.6 |
| Open CL | 3 |
| Shader Model | 6.7 |
| volcano | 1.3 |
| factory overclocked | Yes |
| Backplate | Yes |
| NVIDIA G-Sync | Yes |
| NVIDIA VR-Ready | Yes |
| HDCP 2.2 | Yes |
|
VGA - Dimensions |
|
| length | 304 mm |
| Width | 126 mm |
| Height | 50 mm |
| Weight | 1600 g |
