The ASUS TUF Gaming B650M-PLUS WiFi (90MB1FV0-M0EAY0) is a micro-ATX AM5 motherboard built for next-gen AMD Ryzen processors. Featuring DDR5 support up to 192GB (7600+ MHz OC), PCIe 4.0, dual M.2 slots, and Realtek 2.5Gb LAN with Wi-Fi 6 and Bluetooth 5.2, it delivers powerful, stable performance. With Aura Sync RGB, robust cooling options, and military-grade durability, it’s the perfect motherboard for serious gaming PC builds.

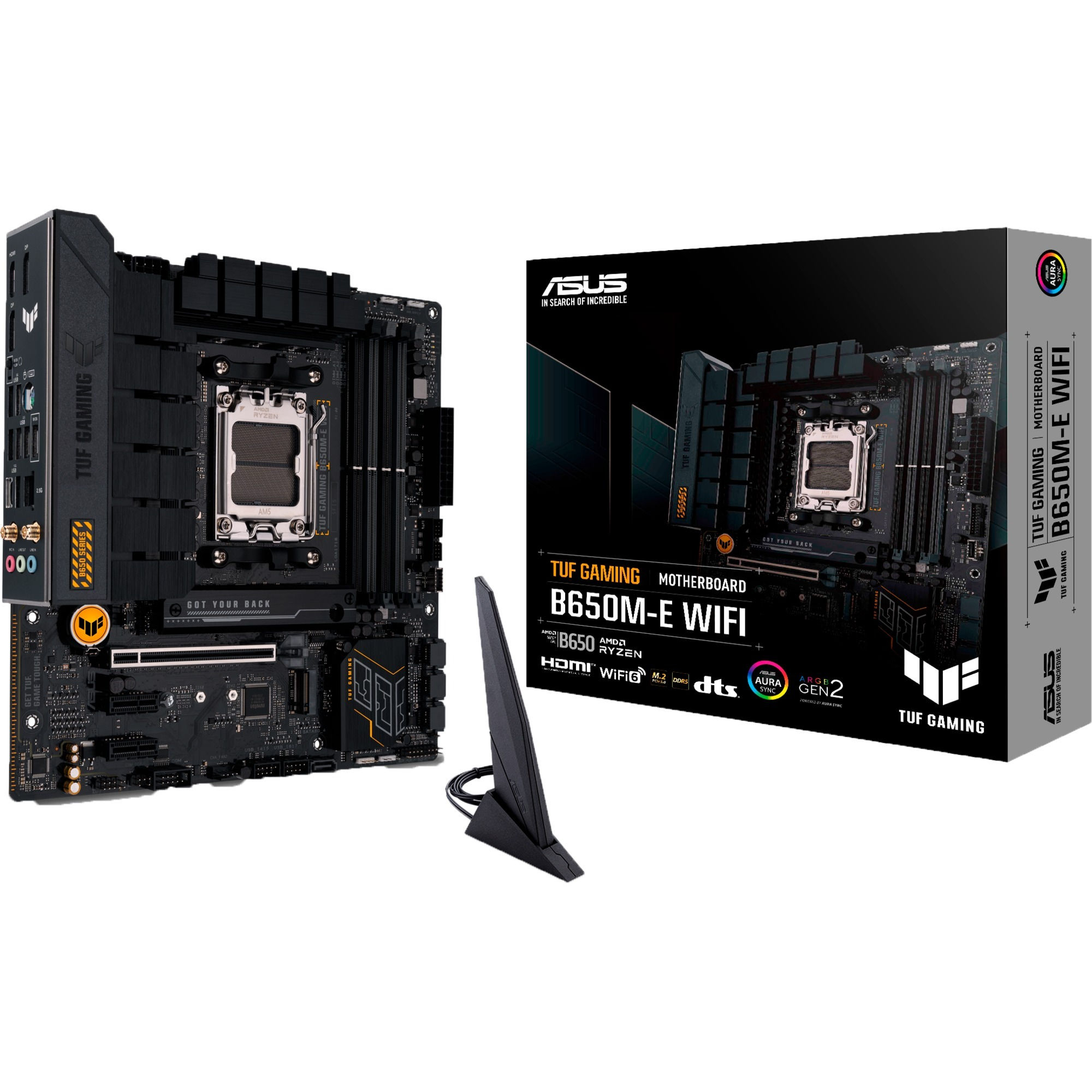

ASUS TUF GAMING B650M-E WIFI, motherboard
Specification
| type | motherboard |
| EAN | 4711387222041 |
| Manufacturer No. |
90MB1FV0-M0EAY0 |
| series | TUF Gaming |
| base | AM5 |
| Max. supported CPUs | 1 |
|
Operating system |
|
| Support |
Windows 10 ready, Windows 11 ready |
| processor | Supported models |
| Chipset | AMD B650 |
| Slots | |
| PCIe x16 |
1x (of which: 1x PCIe x16) |
| PCIe x1 | 2 |
| BIOS |
256Mb Flash ROM, UEFI AMI BIOS |
| Form factor | µATX |
| use | PC |
| power supply |
ATX12V (24-pin + 8-pin + 4-pin) |
| memory | |
| maximum | 192 GB |
| Number of sockets | 4x DDR5 |
| supported standards |
DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 |
| Channels | 2 |
| Maximum memory ranks | 8 |
| Memory controller in CPU | Yes |
|
Connections (external) |
|
| Mouse/Keyboard Combo (PS/2) | 1 |
| USB-C 3.2 Gen 2 (10 Gbps) | 1 |
| USB-A 3.2 Gen 2 (10 Gbit/s) | 1 |
| USB-A 3.2 Gen 1 (5 Gbit/s) | 2 |
| A notice: |
The designation USB 3.2 Gen 1 corresponds to the previous designations USB 3.1 Gen 1 and USB 3.0. |
| USB-A 2.0 | 4 |
| HDMI | 1 |
| DisplayPort Out | 2 |
| microphone | 1 |
| Line-In | 1 |
| Line-Out | 1 |
| RJ-45 | 1 |
| Bluetooth | Yes |
| Wi-Fi | Yes |
|
Connections (internal) |
|
| SATA | 4 |
| M.2 | 2 |
| M.2 interface | PCIe |
| RGB LED header | 1 |
| addressable RGB LED header | 3 |
| USB-C 3.2 Gen 1 (5 Gbps) | 1 |
| 4-pin PWM fan | 5 |
|
Connections (optional) |
|
| USB 3.2 Gen 1 (5 Gbps) | 2 |
| USB 2.0 | 4 |
| Serial | 1 |
| TPM | Yes |
| RGB Standard | AURA Sync |
| SATA controller | AMD B650 |
| USB controller | AMD B650 |
| Onboard graphics |
The graphics ports on the motherboard can only be used when using a CPU with an integrated graphics chip. |
| Sound |
Realtek 7.1 Surround Sound |
| LAN |
Realtek 2.5 Gb Ethernet |
|
Wi-Fi 6 + Bluetooth 5.2 |
|
| Accesories | |
| available |
2x SATA cables, I/O shield, screw set for M.2 SSD, TUF Gaming sticker, WLAN antennas, instructions |
| Dimensions |
Width: 244 mm x Height: 244 mm |
