Build a next-gen AMD gaming PC with the GIGABYTE X870E A PRO X, an ATX AM5 motherboard made for Ryzen 7000, 8000G/F, and 9000 series CPUs. Powered by the AMD X870E chipset, it supports up to 256GB DDR5 across four slots, with extreme overclocking speeds up to DDR5-9000 (OC). Storage is ready for fast builds with 4x PCIe M.2 slots (80–110mm) plus 4x SATA ports. Connectivity is top-tier: Realtek 5GbE LAN, Qualcomm Wi-Fi 7, and Bluetooth. Rear I/O includes 2x USB4, 2x USB-C 10Gbps, 5x USB-A 10Gbps, HDMI, and optical S/PDIF. Enjoy premium Realtek ALC1220 audio, 8 PWM fan headers, and RGB Fusion with RGB/ARGB headers. Note: BIOS update may be needed for newest CPUs.

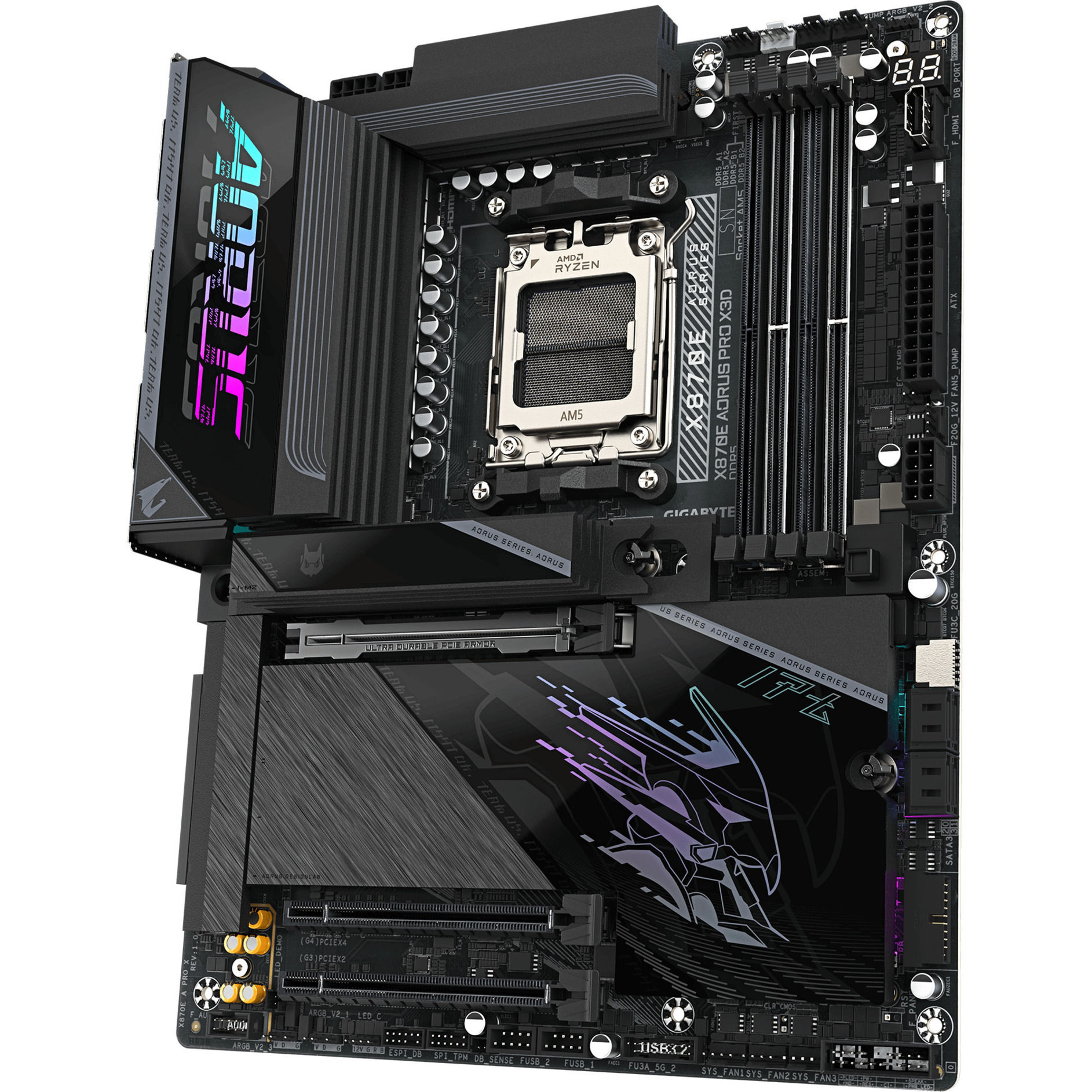

GIGABYTE X870E AORUS PRO X3D, motherboard (black)
| type | Mainboard |
| Color | black |
| EAN | 4719331878603 |
| Manufacturer's No. | X870E A PRO X |
| base | AM5 |
| Maximum supported CPUs | 1 |
|
operating system |
|
| Support |
Windows 11 ready |
| processor | |
| Supported models |
Ryzen 5 7xxx (Raphael), Ryzen 5 7xxxX (Raphael), Ryzen 5 7xxxF (Raphael), Ryzen 5 7xxxX3D (Raphael), Ryzen 5 8xxxF (Phoenix), Ryzen 5 8xxxG (Phoenix), Ryzen 5 9xxx (Granite Ridge), Ryzen 5 9xxxX (Granite Ridge), Ryzen 7 7xxx (Raphael), Ryzen 7 7xxxX (Raphael), Ryzen 7 7xxxX3D (Raphael), Ryzen 7 8xxxG (Phoenix), Ryzen 7 8xxxF (Phoenix), Ryzen 7 9xxxX (Granite Ridge), Ryzen 7 9xxxX3D (Granite Ridge), Ryzen 9 7xxx (Raphael), Ryzen 9 7xxxX (Raphael), Ryzen 9 7xxxX3D (Raphael), Ryzen 9 9xxxX (Granite Ridge), Ryzen 9 9xxxX3D (Granite Ridge) |
| Chipset | AMD X870E |
| slots | PCIe x16 |
| BIOS | |
|
512 Mbit flash AMI UEFI BIOS |
|
| EFI BIOS | Yes |
| Form factor | ATX |
| use | PC |
| power supply |
ATX12V (24-Pin + 2x 8-Pin) |
| memory | |
| maximum | 256 GB |
| Number of sockets | 4x DDR5 |
| supported standards |
DDR5 9000(OC) / 8800(OC) / 8600(OC) / 8400(OC) / 8200(OC)/ 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 MT/s |
| Channels | 2 |
| Maximum storage ranks | 8 |
|
External connections |
|
| USB-C 3.2 Gen 2 (10 Gbit/s) | 2 |
| USB-A 3.2 Gen 2 (10 Gbit/s) | 5 |
| USB-A 3.2 Gen 1 (5 Gbit/s) | 3 |
| USB4 | 2 |
| A notice: |
The designation USB 3.2 Gen 1 corresponds to the earlier designations USB 3.1 Gen 1 and USB 3.0. |
| HDMI | 1 |
| microphone | 1 |
| Line-Out | 1 |
| S/PDIF output (optical) | 1 |
| RJ-45 | 1 |
| Bluetooth | Yes |
| Wi-Fi | Yes |
|
Internal connections |
|
| SATA | 4 |
| M.2 | 4 |
| M.2 Module Key | M |
| M.2 interface | PCIe |
| M.2 Length | 80 - 110 mm |
| RGB LED Header | 1 |
| addressable RGB LED header | 3 |
| 4-pin PWM fan | 8 |
|
Connections (optional) |
|
| USB 3.2 Gen 1 (5 Gbit/s) | 2 |
| USB-C 3.2 Gen 2x2 (20 Gbit/s | 1 |
| USB 2.0 | 2 |
| TPM | Yes |
| RGB Standard | RGB Fusion |
| SATA controller | AMD X870E |
| directly usable RAID levels | 36535 |
| USB controller | AMD X870E |
| Onboard graphics |
The motherboard's graphics ports can only be used when using a CPU with an integrated graphics chip. |
| Sound |
Realtek® ALC1220 CODEC |
| LAN |
Realtek® 5GbE LAN chip (5Gbps/2.5Gbps/1Gbps/100Mbps) |
|
Qualcomm® Wi-Fi 7 QCNCM865 |
|
| Further information |
To support the latest processor cores, a BIOS update may be required. |
| Dimensions |
Width: 244 mm x Height: 305 mm |
