Unlock next-gen gaming with the NVIDIA GeForce RTX 5070 Ti 16GB GDDR7. Featuring 8960 CUDA cores, 2452 MHz boost clock, and PCIe 5.0 support, it delivers ultra-smooth 4K and 8K performance. With DLSS 4, Ray Tracing Gen 4, Reflex 2, and AV1 encoding, this 300W triple-slot GPU is built for serious gamers. Compatible with Windows 11, it includes a power adapter for 16-pin or triple 8-pin setups.

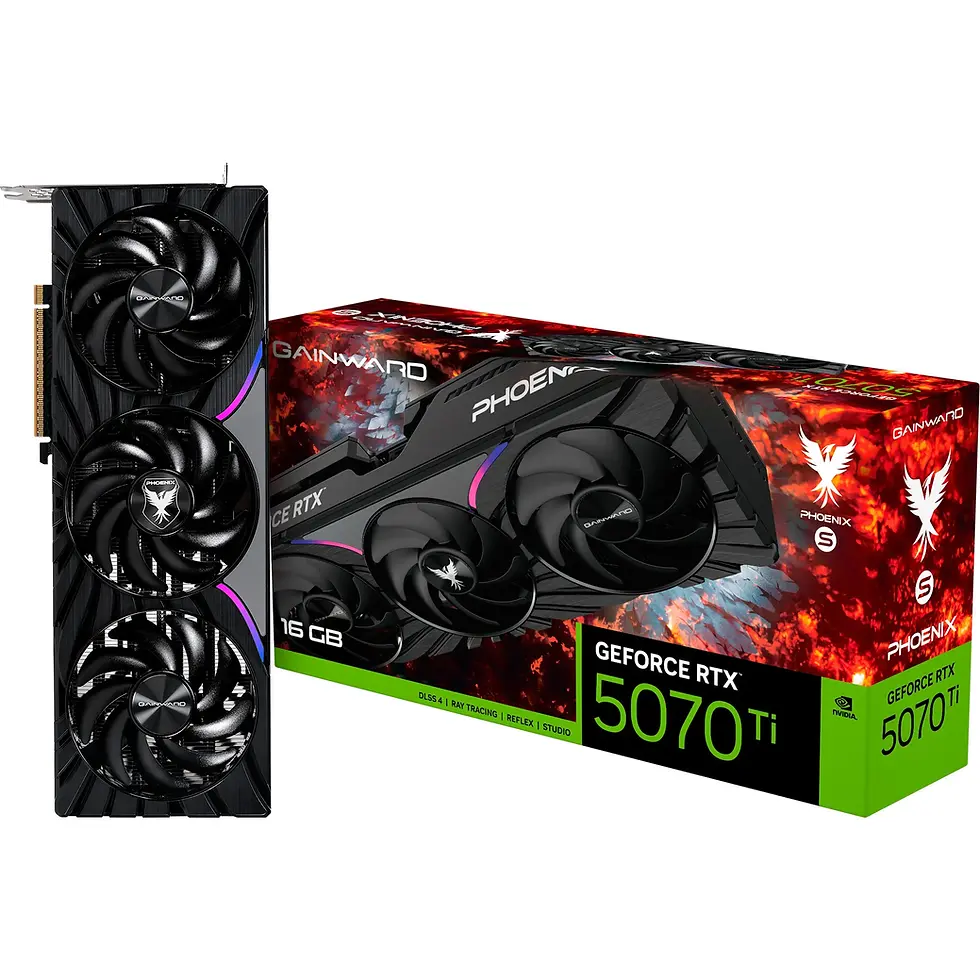

Gainward GeForce RTX 5070 Ti Phoenix-S (DLSS 4, 3x DisplayPort, 1x HDMI 2.1)
| type | graphics card |
| EAN | 4710562245547 |
| Manufacturer No. |
NE7507T019T2-GB2031K |
| slot |
PCIe x16 version 5.0 |
| occupied slots | 3 |
| GPU | |
| Designation |
NVIDIA GeForce RTX 5070 Ti |
| GPU class |
NVIDIA GeForce RTX Gaming |
| Clock frequency | 2300 MHz |
| GPU Boost Clock | 2452 MHz |
| Stream processors | 8960 |
| Support |
DirectX 12 Ultimate, OpenGL 4.6 |
| memory | |
| capacity | 16 GB (GDDR7) |
| Connection | 256 bits |
| effective clock | 28 GHz |
| Connections |
1x HDMI version 2.1b, 3x Displayport version 2.1b |
| Power supply | |
| Average consumption | 300 W |
| Connections |
1x 16-pin (12VHPWR) power connector |
| required power supply | min. 750 W |
| cooling | Cooling with fan |
|
Operating systems |
|
| Supports |
Windows 11, Windows 10 |
| feature |
NVIDIA DLSS 4, Reflex 2, RTX Video, RTX Remix, NVIDIA Broadcast, NVIDIA ShadowPlay, NVIDIA Highlights, NVIDIA G-SYNC, NVIDIA App, Game Ready Driver, NVIDIA Studio Driver, NVIDIA GPU Boost, NVENC Encoder: Gen 9, NVENC Decoder: Gen 6, AV1 Encoder and Decoder, Raytracing Cores: Gen 4, TensorCores (AI): Gen 5 |
| Further information |
Max. resolution: 4K at 480Hz or 8K at 120Hz with DSC |
| Notice |
For the power supply, a power supply with a native 16-pin connector or a power supply with 3x 8-pin PCIe for the included adapter is required |
| Accesories | |
| available | Power adapter |
| Dimensions |
Width: 133.1 mm x Height: 60 mm x Depth/Length: 331.9 mm |
